Separate touching objects

CookbookRegions and masks

Use peaks in the foreground distance map as seeds for watershed segmentation.

Try the recipe ↓

The pipeline

VISUAL WALKTHROUGHRegions and masks
Follow the images, then read what passes to the next algorithm.
STARTING IMAGEOriginal sample448 × 320
The unchanged source image. All steps use this same example.

The unchanged source image. All steps use this same example.

STEP 01 · 1 / 1Foreground mask448 × 320
Foreground mask: The white foreground contains the objects to separate.

The white foreground contains the objects to separate.

STEP 01 / 03

Threshold the foreground

Explore the algorithm →
threshold

Build a binary object mask.

Receives
Bright touching objects against a darker background.
Passes to the next step
A binary foreground mask that may contain several touching objects in one component.

Why this step? Thresholding limits the problem to a foreground silhouette. Its boundary is crucial: the distance transform will measure distance to this boundary, so a missing edge or merged background region changes where object centres appear.

Actual OpenCV 5.0.0 results on the illustrated sample, using the lab’s default algorithm settings. Masks, overlays and normalized fields are labelled previews; the data contracts above describe what the algorithms really exchange. Try this chain with your images ↓

Why this chain works

Touching objects share a connected silhouette, so counting connected components cannot separate them. Their interiors can still have distinct centres. Use those centres as competing seeds and grow separate regions from them.

  1. 01

    Threshold the foreground

    threshold

    Thresholding limits the problem to a foreground silhouette. Its boundary is crucial: the distance transform will measure distance to this boundary, so a missing edge or merged background region changes where object centres appear.

    Receives
    Bright touching objects against a darker background.
    Passes on
    A binary foreground mask that may contain several touching objects in one component.
  2. 02

    Find interior seeds

    distanceTransformdilatecompareconnectedComponents

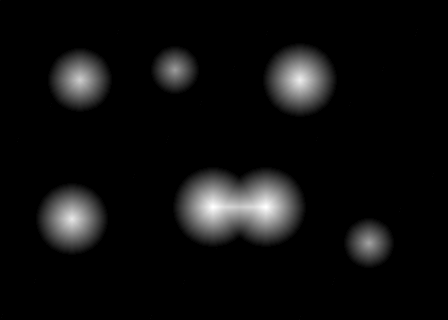

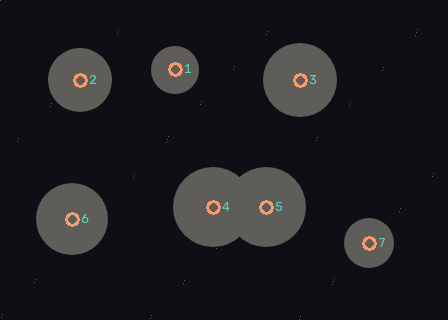

    Distance increases toward the interior. Comparing the distance map with its local dilation finds local maxima; a height threshold rejects shallow peaks. Connected components turn surviving peak areas into separate marker IDs. Pixels outside the mask become a known background marker, while the rest remain unassigned.

    Receives
    The foreground mask.
    Passes on
    A signed 32-bit marker image with distinct foreground seeds, background and unknown pixels.
  3. 03

    Flood from the seeds

    watershed

    Marker-controlled watershed expands competing regions using image differences. Where competing basins meet, it marks a boundary. This can split a connected silhouette because its seeds already encode multiple candidate objects.

    Receives
    The colour image and marker labels.
    Passes on
    A label image with -1 at watershed boundaries, overlaid as red lines on the original image.

Tune and diagnose

Choose the parameters

Lower the minimum peak height if smaller objects have no seeds. Increase the suppression radius if one object receives many nearby seeds, but keep it smaller than the spacing between genuine centres.

Read the result

Inspect Foreground seeds before the final boundary. Aim for one seed per intended object. If strong overlap leaves only one interior peak, watershed has no evidence that there should be two objects. Correct the mask or provide better markers.

Try it with your images

Choose your own image or start with the built-in sample. Run the recipe, then use the stage buttons to inspect intermediate results without rerunning it.

YOUR IMAGE · REAL OPENCV

Experiment at pixel level

Open full lab ↗

Use peaks in the foreground distance map as seeds for watershed segmentation.

The engine loads on your first run. Your images stay in this browser.

Input448 × 320
OutputWaiting for a result

Scroll over either image to zoom at the pointer. Use the scrollbars to pan both views over the same relative area. Zoom is relative to the input; pixel coordinates belong to each image. Warps can change scene correspondence.

Pixel inspector RGBA · native values · matched scale · 9 × 9 output pixels
Hover to inspect. Click to pin a pixel.
Input
Select a pixel

Output
Select a pixel

Sample models and licenses

Assumptions and limits

Seed quality controls the split. Very strong overlap can leave only one peak; noise can create too many seeds. Lower the peak height for smaller objects and adjust the suppression radius to their spacing.
