Straighten a tilted page

CookbookDocuments

Estimate a dominant near-horizontal line angle and rotate the page to make those lines level.

Try the recipe ↓

The pipeline

VISUAL WALKTHROUGHDocuments
Follow the images, then read what passes to the next algorithm.

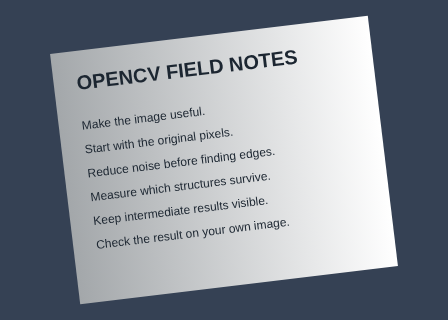

STARTING IMAGEOriginal sample448 × 320
The unchanged source image. All steps use this same example.

The unchanged source image. All steps use this same example.

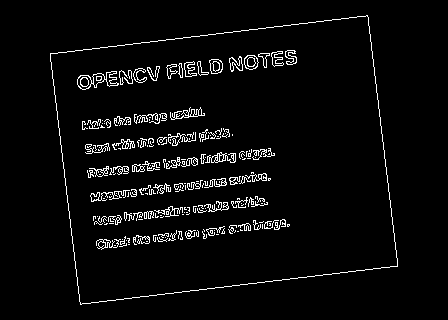

STEP 01 · 1 / 1Page edges448 × 320
Page edges: Edges used to estimate the dominant line orientation.

Edges used to estimate the dominant line orientation.

STEP 01 / 03

Find strong edges

Explore the algorithm →
Canny

Canny exposes text and page boundaries.

Receives
The grayscale page.
Passes to the next step
An edge map.

Why this step? Canny emphasizes text and rule edges. A sparse edge representation gives the following line detector evidence about direction without treating every filled character pixel as an independent feature.

Actual OpenCV 5.0.0 results on the illustrated sample, using the lab’s default algorithm settings. Masks, overlays and normalized fields are labelled previews; the data contracts above describe what the algorithms really exchange. Try this chain with your images ↓

Why this chain works

Many text baselines or ruled lines share a small tilt. Detect those directions, summarize the dominant angle robustly, then correct the entire page with one rotation.

  1. 01

    Find strong edges

    Canny

    Canny emphasizes text and rule edges. A sparse edge representation gives the following line detector evidence about direction without treating every filled character pixel as an independent feature.

    Receives
    The grayscale page.
    Passes on
    An edge map.

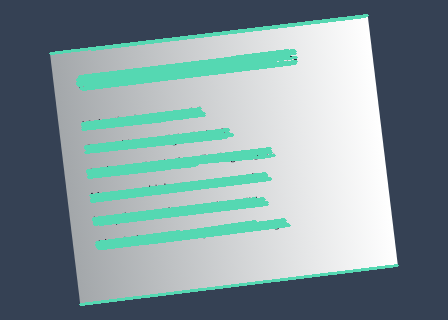

  2. 02

    Estimate the tilt

    HoughLinesPMedian angle

    Probabilistic Hough detection extracts line segments. The lab normalizes their directions and keeps only segments within the accepted near-horizontal angle range. Taking the median reduces the influence of a few slanted graphics or incorrect segments.

    Receives
    The edge map.
    Passes on
    A set of accepted segments and one median tilt estimate.
  3. 03

    Rotate around the centre

    getRotationMatrix2DwarpAffine

    A rotation about the image centre applies the estimated correction to all pixels consistently. With image coordinates increasing downward, the measured atan2 angle is passed to OpenCV’s rotation matrix to level those segments. Cubic interpolation resamples pixels and a white border fills exposed space.

    Receives
    The colour page and median angle.
    Passes on
    A page rotated into the same output dimensions, with the correction angle reported.

Tune and diagnose

Choose the parameters

Increase minimum line length to reject short character fragments, or decrease it when no useful segments survive. Limit accepted tilt to the expected document orientation so vertical rules do not dominate.

Read the result

Inspect Accepted lines: they should follow text or intended horizontal rules. Tables and decorative lines can bias the median. Rotation can clip corners in the unchanged canvas size, and it cannot remove perspective distortion.

Try it with your images

Choose your own image or start with the built-in sample. Run the recipe, then use the stage buttons to inspect intermediate results without rerunning it.

YOUR IMAGE · REAL OPENCV

Experiment at pixel level

Open full lab ↗

Estimate a dominant near-horizontal line angle and rotate the page to make those lines level.

The engine loads on your first run. Your images stay in this browser.

Input448 × 320
OutputWaiting for a result

Scroll over either image to zoom at the pointer. Use the scrollbars to pan both views over the same relative area. Zoom is relative to the input; pixel coordinates belong to each image. Warps can change scene correspondence.

Pixel inspector RGBA · native values · matched scale · 9 × 9 output pixels
Hover to inspect. Click to pin a pixel.
Input
Select a pixel

Output
Select a pixel

Sample models and licenses

Assumptions and limits

Requires several near-horizontal lines. Tables, perspective distortion and vertical layouts can bias the estimate.

TypeScript core chain

Initialize the shared engine once with await initOpenCV(), then use these named imports. In a bundled browser app, pass the WASM URL as shown in the quickstart. image is an 8-bit BGR Mat from that same engine; paired recipes receive an equally sized nextImage. Region recipes use an in-bounds pixel rect. Read outputs before the using scope ends. See matrix ownership.

import {
  COLOR_BGR2GRAY,
  Canny,
  HoughLinesP,
  Mat,
  cvtColor,
  getRotationMatrix2D,
  warpAffine
} from '@banou/opencv-wasm'

// The engine is already initialized; image is an 8-bit BGR Mat.
// "using" releases native handles at scope exit; inspect or copy outputs before then.

// 1. Allocate grayscale, edge pixels and detected line-segment coordinates.
using gray = new Mat(), edges = new Mat(), lines = new Mat()
// Use brightness for line detection while keeping the colour input for final rotation.
cvtColor(image, gray, COLOR_BGR2GRAY)
// Build an edge map using low/high gradient thresholds 50 and 150.
Canny(gray, edges, 50, 150)
// 2. Detect line segments with 1-pixel distance bins and 1-degree angle bins.
// Require 25 votes, a length of at least 50 pixels, and gaps of at most 15 pixels.
HoughLinesP(edges, lines, 1, Math.PI / 180, 25, 50, 15)
// Collect near-horizontal line directions as candidates for the page tilt.
const angles: number[] = []
// Every segment occupies four integers: its start x,y followed by end x,y.
for (let i = 0; i < lines.data32S.length; i += 4) {
  // Read one segment's two endpoints from the native coordinate array.
  const [x1, y1, x2, y2] = lines.data32S.slice(i, i + 4)
  // atan2 gives its direction in radians; multiply by 180/pi for degrees.
  const angle = Math.atan2(y2 - y1, x2 - x1) * 180 / Math.PI
  // Keep slopes within 25 degrees of horizontal to exclude vertical page edges.
  // The full lab also normalizes reversed endpoint directions before this check.
  if (Math.abs(angle) <= 25) angles.push(angle)
}
// Do not rotate arbitrarily if no suitable line evidence was found.
if (!angles.length) throw new Error('No near-horizontal lines found')
// 3. Sorting lets the middle angle act as a robust tilt estimate despite some outliers.
angles.sort((a,b) => a-b)
// Build a rotation about the image centre using that middle angle. Scale 1 keeps size.
// In image coordinates (y downward), this OpenCV rotation levels the measured slope.
using rotation = getRotationMatrix2D({ x: image.cols / 2, y: image.rows / 2 }, angles[Math.floor(angles.length / 2)], 1)
// Allocate the rotated colour result.
using output = new Mat()
// Resample into the original canvas dimensions. This short form uses default
// interpolation and border fill; the full lab uses cubic interpolation and white borders.
warpAffine(image, output, rotation, { width: image.cols, height: image.rows })

The snippets isolate the core operations. The complete runnable recipes also include validation, filtering, overlays, intermediate previews and resource cleanup.
